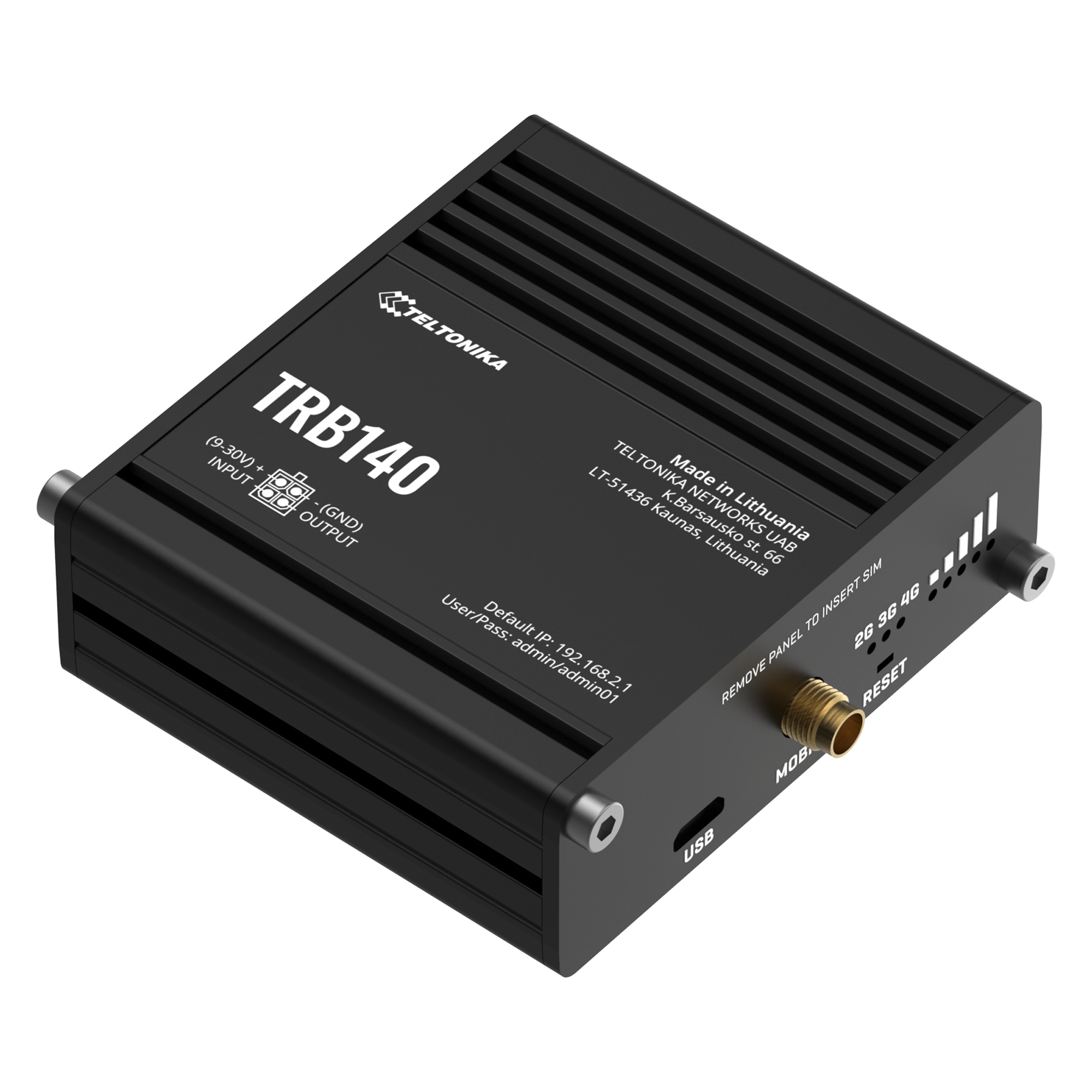

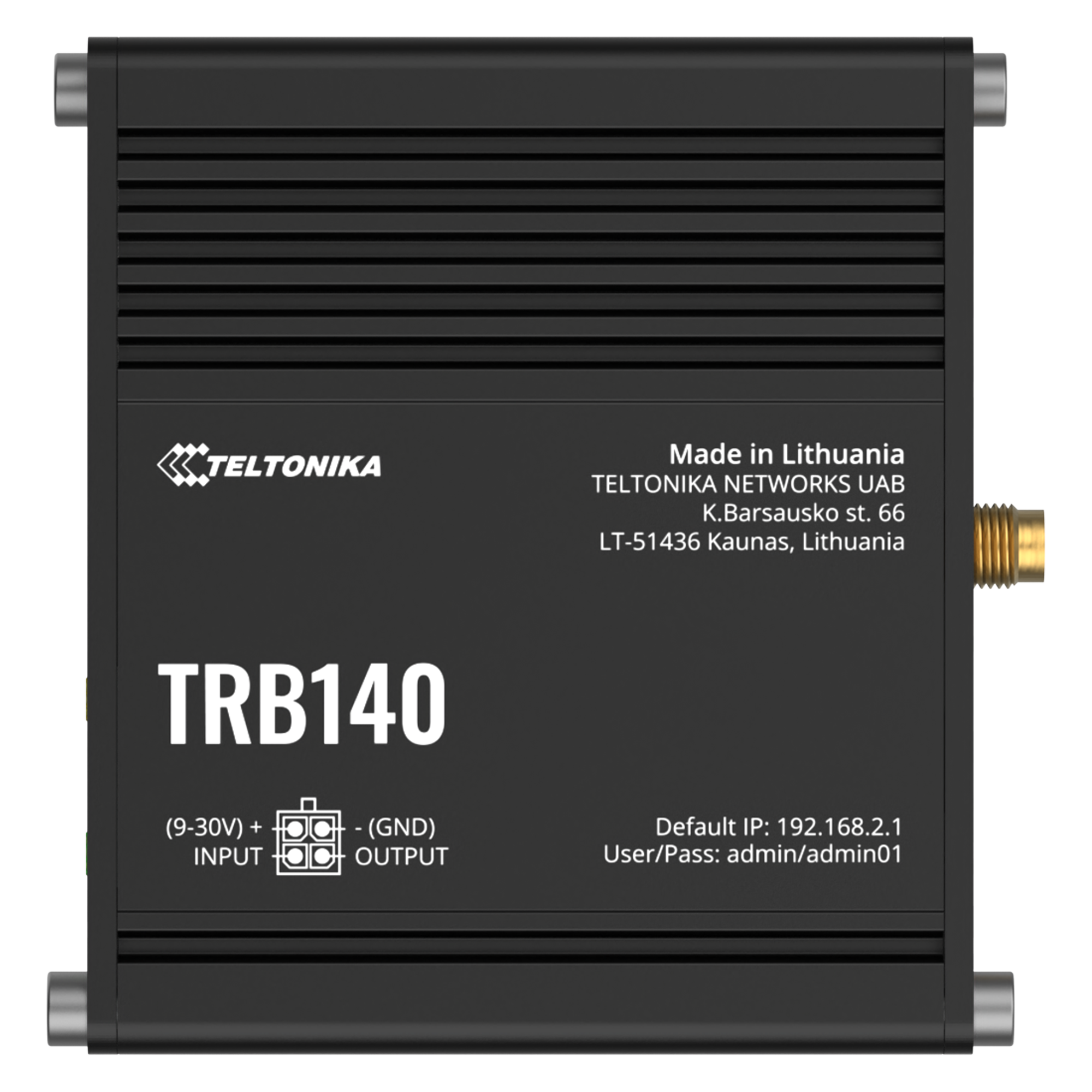

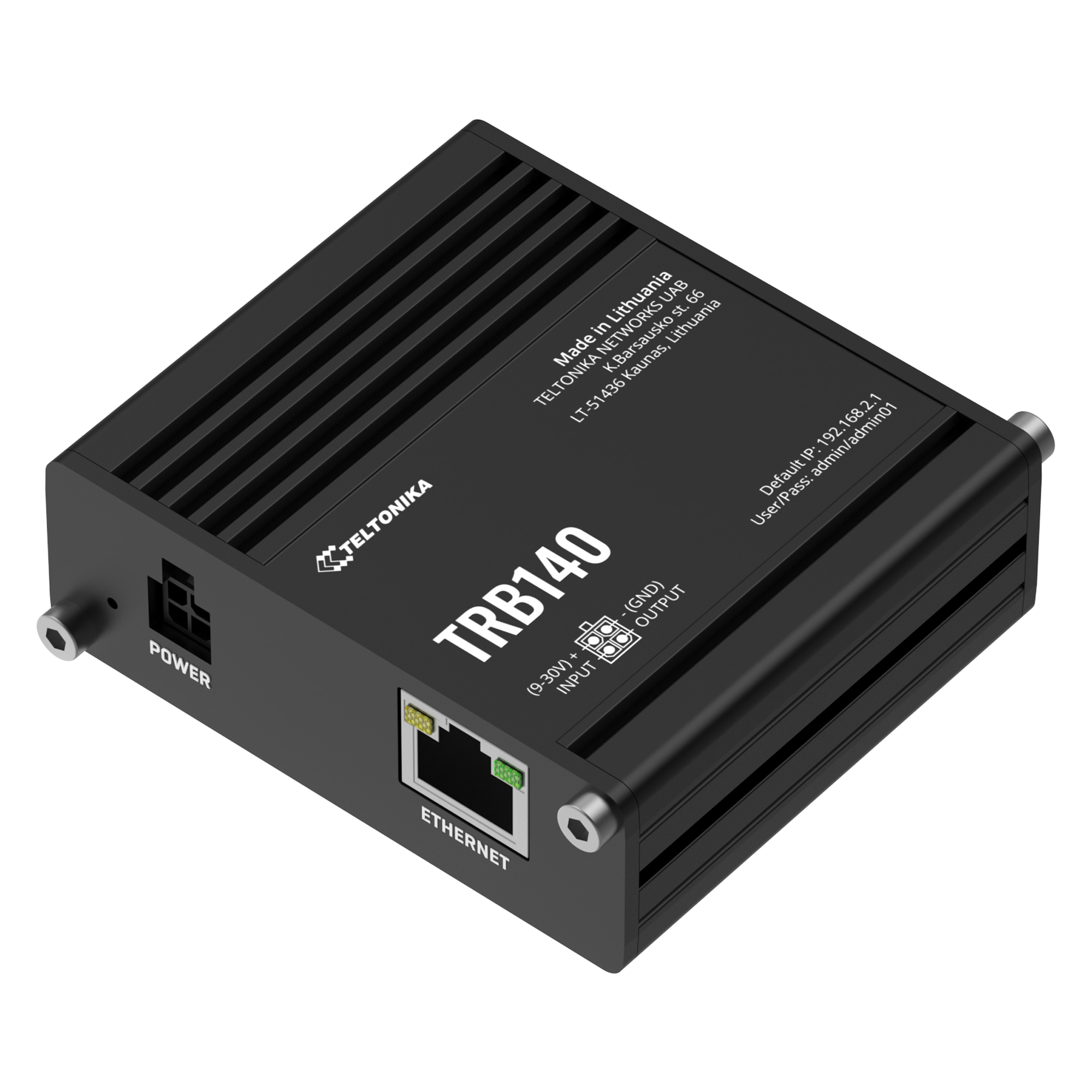

TRB140ゲートウェイ

¥27,700

TRB140は、ミッションクリティカルなLTE（Cat 4）とギガビット・イーサネットの接続オプションを備えた、超小型・軽量・省電力なIoTデバイスです。Linux環境では、高度なカスタマイズが可能となっております。単一機器で、ワンランク上の信頼性と安全なインターネット接続が必要とされるプロジェクトやアプリケーションに最適です。

在庫10個 (お取り寄せができます)

カテゴリー: ,

説明

Mobile

  • Mobile module

    4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

  • Status

    Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

  • USSD

    Supports sending and reading Unstructured Supplementary Service Data messages

  • Black/White list

    Operator black/white list

  • Multiple PDN

    Possibility to use different PDNs for multiple network access and services

  • Band management

    Band lock, Used band status display

  • APN

    Auto APN

  • Bridge

    Direct connection (bridge) between mobile ISP and device on LAN

  • Passthrough

    Router assigns its mobile WAN IP address to another device on LAN

Network

  • Routing

    Static routing

  • Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

  • VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

  • Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

  • Firewall

    Port forward, traffic rules, custom rules

  • DHCP

    Static and dynamic IP allocation, DHCP Relay, Relayd

  • QoS / Smart Queue Management (SQM)

    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

  • DDNS

    Supported >25 service providers, others can be configured manually

  • Network backup

    Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

  • Load balancing

    Balance Internet traffic over multiple WAN connections

  • SSHFS

    Possibility to mount remote file system via SSH protocol

Security

  • Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

  • Firewall

    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

  • Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

  • VLAN

    Port and tag based VLAN separation

  • Mobile quota control

    Custom data limits for SIM card

  • WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

  • Access control

    Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

  • OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

  • OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

  • IPsec

    IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

  • GRE

    GRE tunnel, GRE tunnel over IPsec support

  • PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

  • Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

  • DMVPN

    Method of building scalable IPsec VPNs

  • SSTP

    SSTP client instance support

  • ZeroTier

    ZeroTier VPN client support

  • WireGuard

    WireGuard VPN client and server support

  • Tinc

    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Modbus TCP スレーブ

  • ID range

    Respond to one ID in range [1;255] or any

  • Allow Remote Access

    Allow access through WAN

  • Custom registers

    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

Modbus TCP マスタ

  • Supported functions

    01, 02, 03, 04, 05, 06, 15, 16

  • Supported data formats

    8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

  • Protocol

    HTTP(S), MQTT, Azure MQTT

MQTT Gateway

  • MQTT Gateway

    Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

  • Supported modes

    TCP Master, DNP3 Outstation

Monitoring & Management

  • WEB UI

    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

  • FOTA

    Firmware update from server, automatic notification

  • SSH

    SSH (v1, v2)

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET

  • Call

    Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

  • TR-069

    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

  • MQTT

    MQTT Broker, MQTT publisher

  • SNMP

    SNMP (v1, v2, v3), SNMP Trap

  • JSON-RPC

    Management API over HTTP/HTTPS

  • MODBUS

    MODBUS TCP status/control

  • RMS

    Teltonika Remote Management System (RMS)

IoT Platforms

  • Cloud of Things

    Allows monitoring of: Device data, Mobile data, Network info, Availability

  • ThingWorx

    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

  • Cumulocity

    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

  • Azure IoT Hub

    Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

System Characteristics

  • CPU

    ARM Cortex-A7 1.2 GHz

  • RAM

    128 MB, DDR2

  • FLASH storage

    512 MB, SPI Flash

Firmware / Configuration

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

Firmware Customization

  • Operating system

    RutOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

Input / Output

  • Input

    1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

  • Output

    1 x Digital Output, Open collector output, max output 30 V, 300 mA

  • Events

    Email, RMS, SMS

  • I/O juggler

    Allows to set certain I/O conditions to initiate event

Power

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

  • PoE (passive)

    Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC

  • Power consumption

    < 5 W

Physical Interfaces

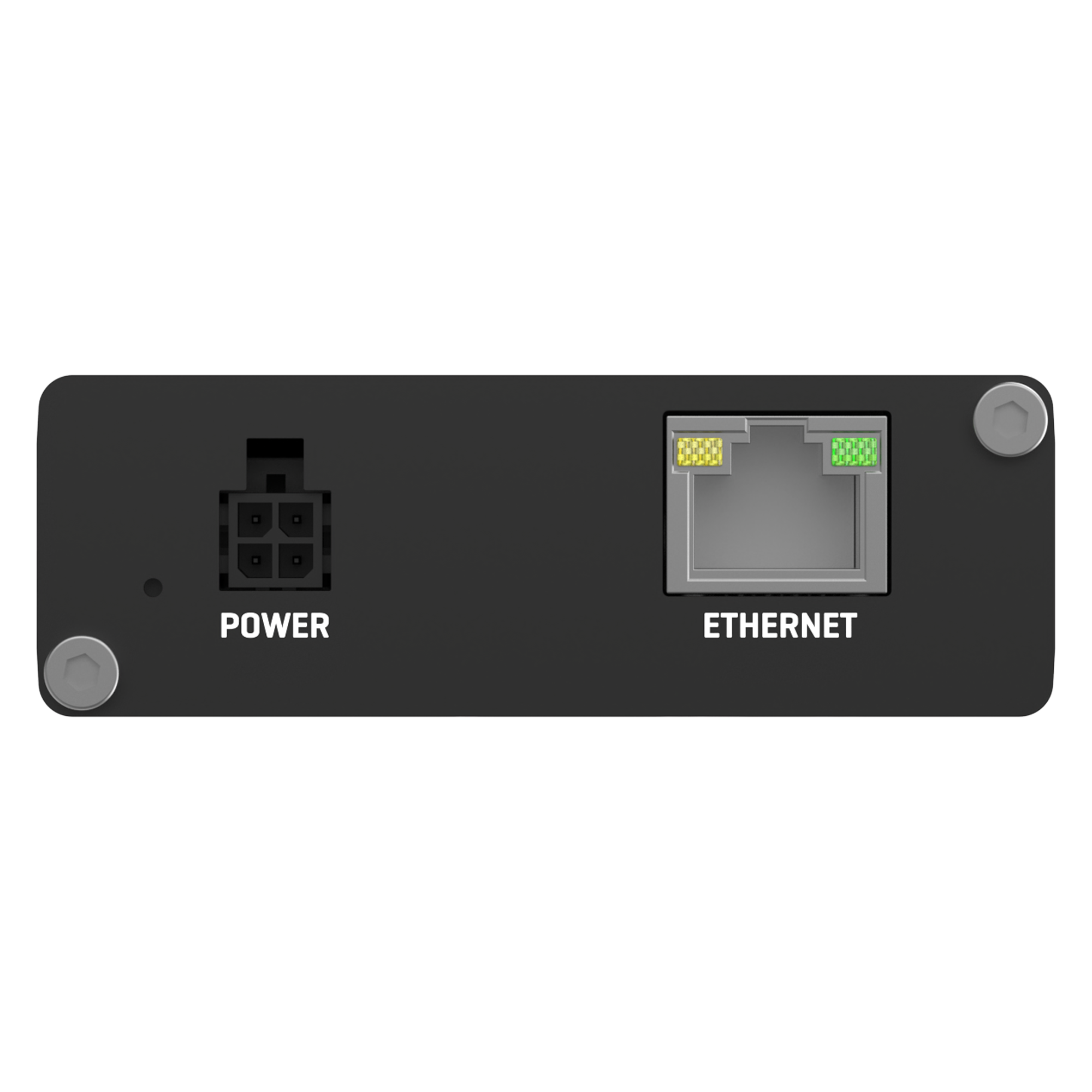

  • Ethernet

    1 x RJ45 port, 10/100/1000 Mbps

  • I/O’s

    1 x Digital Input, 1 x Digital Output on 4-pin power connector

  • Status LEDs

    3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED

  • SIM

    1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

  • Power

    1 x 4-pin power connector

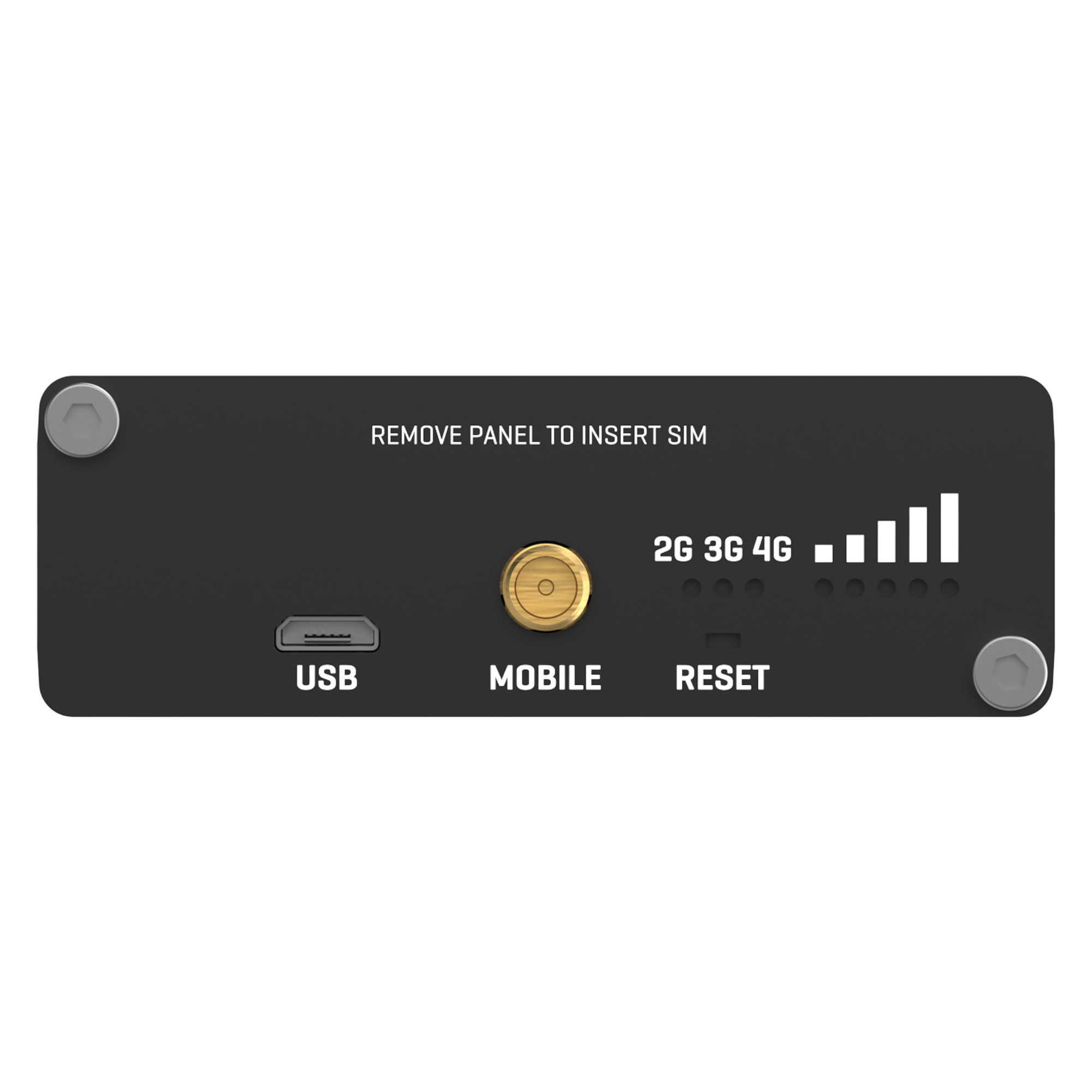

  • Antennas

    1 x SMA for LTE

  • USB

    1 x Virtual network interface via micro USB

  • Reset

    Reboot/User default reset/Factory reset button

Physical Specification

  • Casing material

    Aluminum housing

  • Dimensions (W x H x D)

    74.5 x 25 x 64.4 mm

  • Weight

    134 g

  • Mounting options

    Bottom and sideways DIN rail, Flat surface

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    CE/RED, EAC, RoHS, WEEE

EMI Immunity

  • Standards

    Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
    FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)

  • ESD

    EN 61000-4-2:2009

  • RS

    EN 61000-4-3:2006 + A1:2008 + A2:2010

  • EFT

    EN 61000-4-4:2012

  • Surge protection

    EN 61000-4-5:2014

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2004

RF

  • Standards

    EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

Safety

  • Standards

    IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017

    EN 50385:2017

    EN 62232:2017
